Lithonia Lighting

C

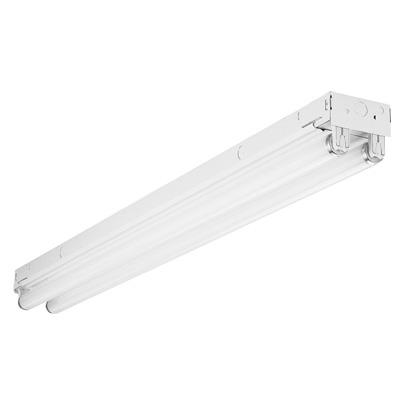

General-Purpose Channels Discontinued
  • Overview
  • Specifications

For applications that require good illumination levels. Suitable for general purpose applications.


Construction

Steel channel (standard) with high-gloss, baked polyester finish.

Combination end plates/channel connector furnished for either unit-mounted or continuous-row application.

Channel cover retained by quarter-turn fastener.

Optional aluminum channel available, features corrosion-resistant fasteners for use in damp and harsh locations.

White specular reflectors available.

Electrical

Thermally protected, resetting, Class P, UL Listed and CSA Certified ballast is standard. Sound rating depends on lamp/ballast combination.

AWM, TFN, THHN wire used throughout, rated for required temperatures.

Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source Compact Fluorescent, Fluorescent
Dynamic Feature Not Applicable
Lumens Not Applicable
Product Type Strip Light
Environmental Listing Dry Location
Regulatory Listing UL
Fixture Wattage 17, 25, 32, 39, 40, 59, 60, 75
Voltage Rating 100, 120, 120-277, 200, 208, 220, 230, 236, 240, 250, 277, 347, 347-480
Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Ivory, Orange, Pewter, Purple, Red, Silver, White, Yellow
Mounting Type Surface, Suspended
Series C, TC

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Symmetric or asymmetric reflectors Symmetric or asymmetric reflectors 2/24/2011 View
    Spec Sheet C Strip Specsheet (Discontinued) General-purpose T8, T8 slimline (Discontinued) 3/7/2022 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories C Strip_Mounting Hardware parts.pdf Stems, clips, hangers, etc 3/4/2021 View
    Accessories C Strip_Wire Guard Replacement parts.pdf Hardware and Guards 3/4/2021 View
    Material Safety Data Sheet Nicd-Sds.pdf MSDS for all Power Sentry NiCad brand battery packs 5/10/2018 View
