MC122BKWH - ALF

MC122BKWH - 12/2 WG MC Sol BK/WH/GN Alu Armor 250'

Flexible Conduit

  • $190.71 (Per 250 Feet)
  • $0.76 (Per Foot)
  • $190.71 (Per 250 Feet)
  • $762.83 (Per 1,000 Feet)

Availablity: In Stock

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    MC122BKWH
    Manufacturer
    Flexible Conduit
    Manufacturer's Part Number
    55171601
    Description
    12/2 WG MC Sol BK/WH/GN Alu Armor 250'
    Aluminum Armored Conductor, Solid, #12 Awg Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White and Green, 2 Conductors, 250 FT Overall Length, 0.475 In Outside Diameter, +90 °C Operating Temperature, 104 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Armored Cable - BX - Ac - MC - Steel Armor Copper Conductors  Mark as Incorrect
    Suggest a New Category
    Classification
    BX & MC
    UNSPSC
    26121517 - Copper wire
    UPC/GTIN
    032886347146 / 00032886347146
    Weight per unit
    0.105 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    250 Feet
    Unit
    $0.76 (Per Foot)
    Carton
    $190.71 (Per 250 Feet)
    Resources
    Images

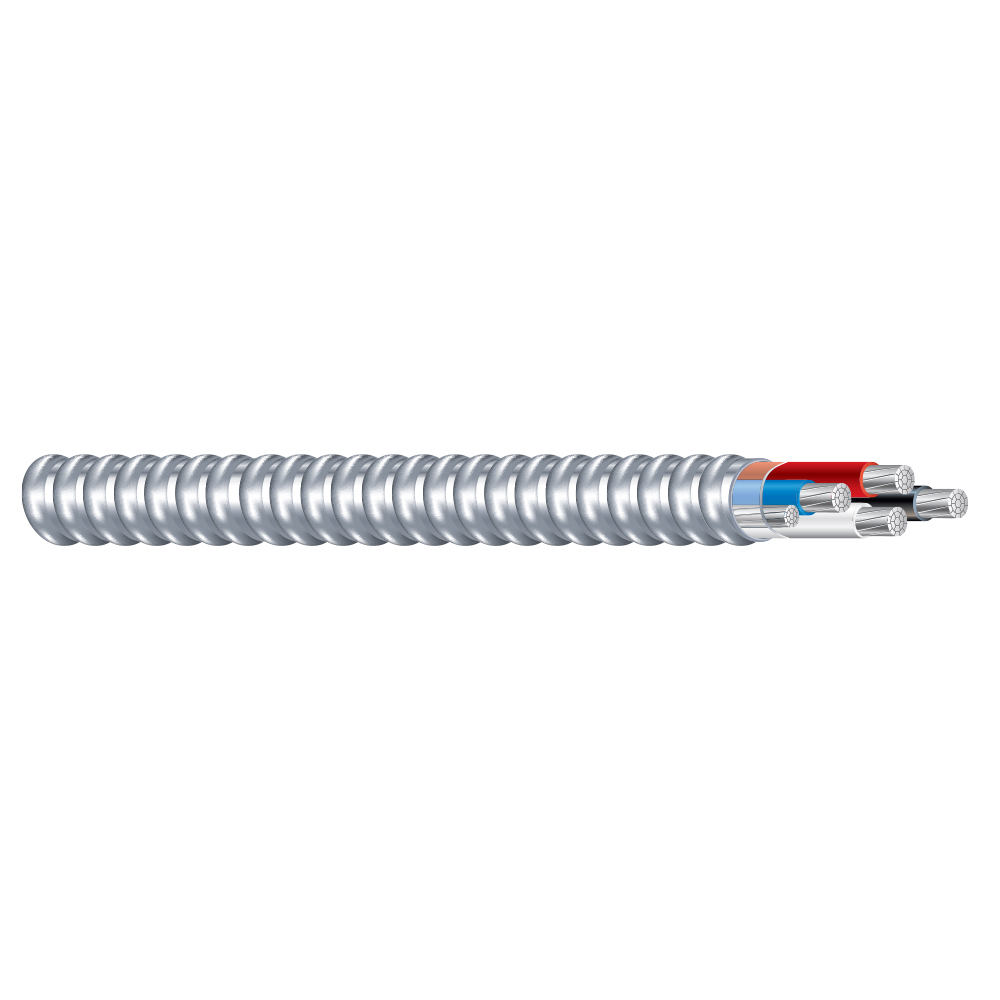

    MC122BKWH - Large Image

    MC122BKWH - Small Image

    MC122BKWH - Large Image

    MC122BKWH - Large Image

    MC122BKWH - 360 Image
    Attachments


    MC122BKWH - Specification Sheet

    MC122BKWH - Specification Sheet

    MC122BKWH - Specification Sheet

    MC122BKWH - Specification Sheet
    Other Links


    MC122BKWH - Other

    MC122BKWH - Other

    MC122BKWH - Other

    MC122BKWH - Other

    MC122BKWH - Other

    MC122BKWH - Other
    Specifications Sheets


    MC122BKWH - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Conductor Size
    #12 AWG
    Current Rating
    20 A
    Number of Conductors
    2
    Voltage Rating
    600 V
    Material, Color, and Finish
    Insulation Material
    Thermoplastic Nylon
    Conductor Material
    Copper
    Color
    Black;White;Green
    Jacket Material
    PVC
    Dimensions and Weight
    Overall Length
    250 ft
    Length
    250
    Descriptions
    Product Type
    Aluminum Armored Conductor
    Long Description
    Aluminum Armored Conductor, Solid, #12 AWG Conductor Size, PVC Jacket Material, Thermoplastic Nylon Insulation Material, Copper Conductor Material, 600 V, 20 A, Black, White and Green, 2 Conductors, 250 ft Overall Length, 0.475 in Outside Diameter, +90 °C Operating Temperature, 104 lb/mft
    Short Description
    Aluminum Armored Conductor, Solid, 12/4 AWG with ground, PVC Jacket, 250 ft
    extra long description
    SWC 55171601 Duraclad® Type MC
    Description
    12/2 WG MC SOL BK/WH/GN ALU ARMOR 250'
    Additional Information
    Solid/Strand
    Solid
    outside diameter
    0.475 in
    Maximum Operating Temperature
    +90 °C
    Standards Met
    RoHS Compliant;Federal Specification A-A-59544;IEEE 1202;NEC;UL 83;UL1569;UL1685
    Made in USA
    yes
    Manufacturer Information
    Brand
    Flexible Conduit
    Manufacturers Part Number
    55171601
    sub brand
    Armorlite
    GTIN
    00032886347146
    UPC
    032886347146
    Taxonomies, Classifications, and Categories
    Category Description
    BX & MC
    Type
    MC
    Availability
    minimum qty
    250
    Packaging
    Weight
    104 lb/mft
    Package Type
    Coil
    Weight per foot
    0.105
    Carton
    250
    Uses, Certifications, and Standards
    Application
    Commercial;Industrial;Institutional;Multi-Residential Buildings
