FNM15 - 15A 250V TD Midget Fuse

Eaton

$14.65 (Each)
$14.65 (Each)
$146.50 (Per 10)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Quick Specs

Catalog Number: FNM15 Vendor Code BUS
Manufacturer: Eaton
Manufacturer's Part Number: FNM-15
Description: 15A 250V TD Midget Fuse
Fuse, Time Delay Fuse Speed, Class CC Fuse, Ferrule End X Ferrule End Connection, 15 A, 250 V Ac, Melamine (Tube);Brass (Cap) Material, Dual Element, 0.41 In Diameter, 1.5 In Overall Length, 0.125 LB
Slang Terms: Suggest a New Term
Categories: Fuses - Small Dimension Fuses Mark as Incorrect
Suggest a New Category
Classification: Midget Fuses
UNSPSC: 39121609 - Midget fuses
UPC/EAN/GTIN: 051712521505 / 5027590060219 / 00051712521505
Weight per unit: 0.02 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $14.65 (Each)
Carton: $146.50 (Per 10)

Resources

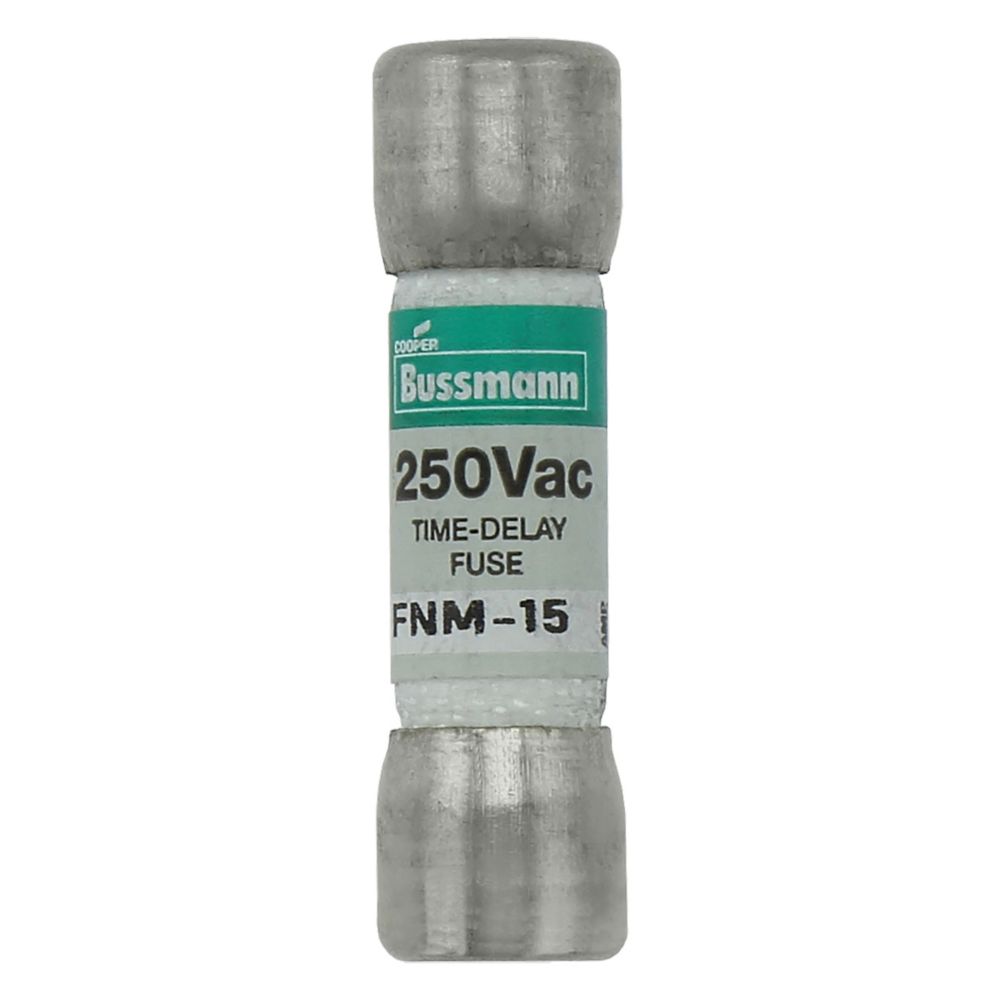

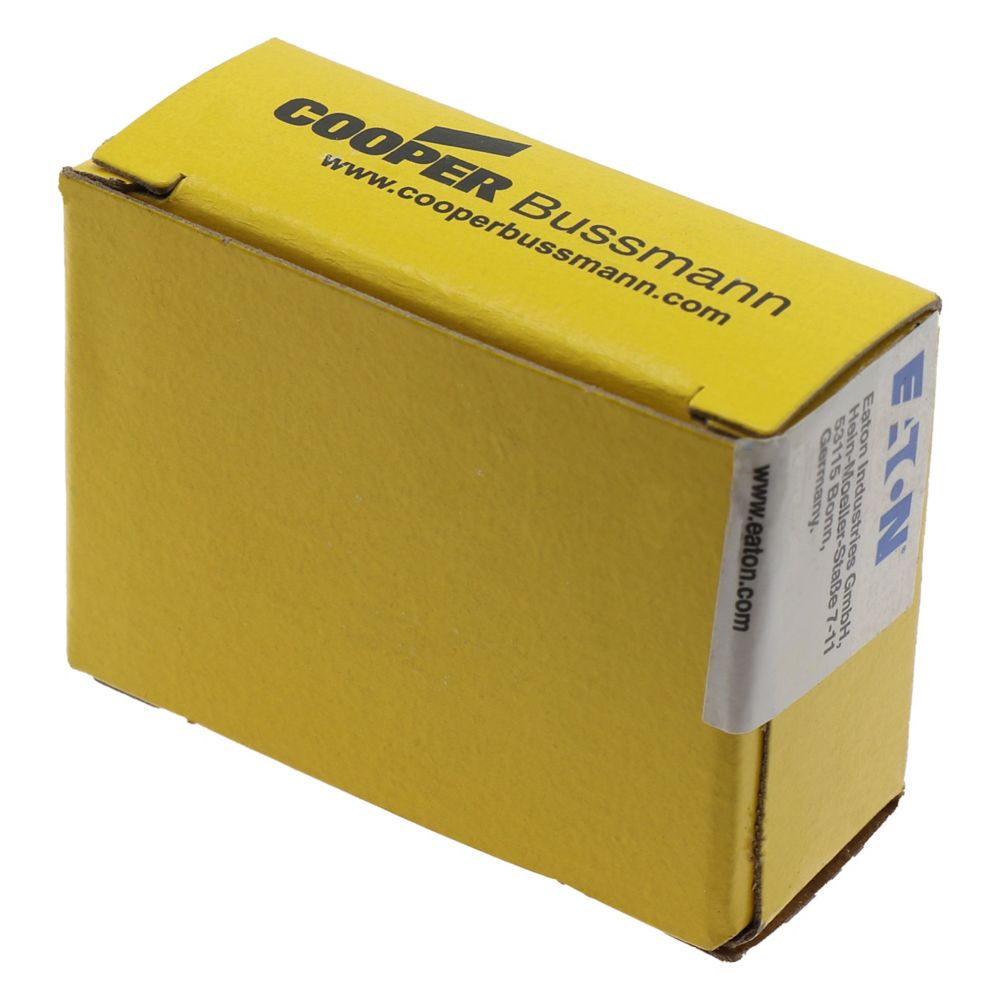

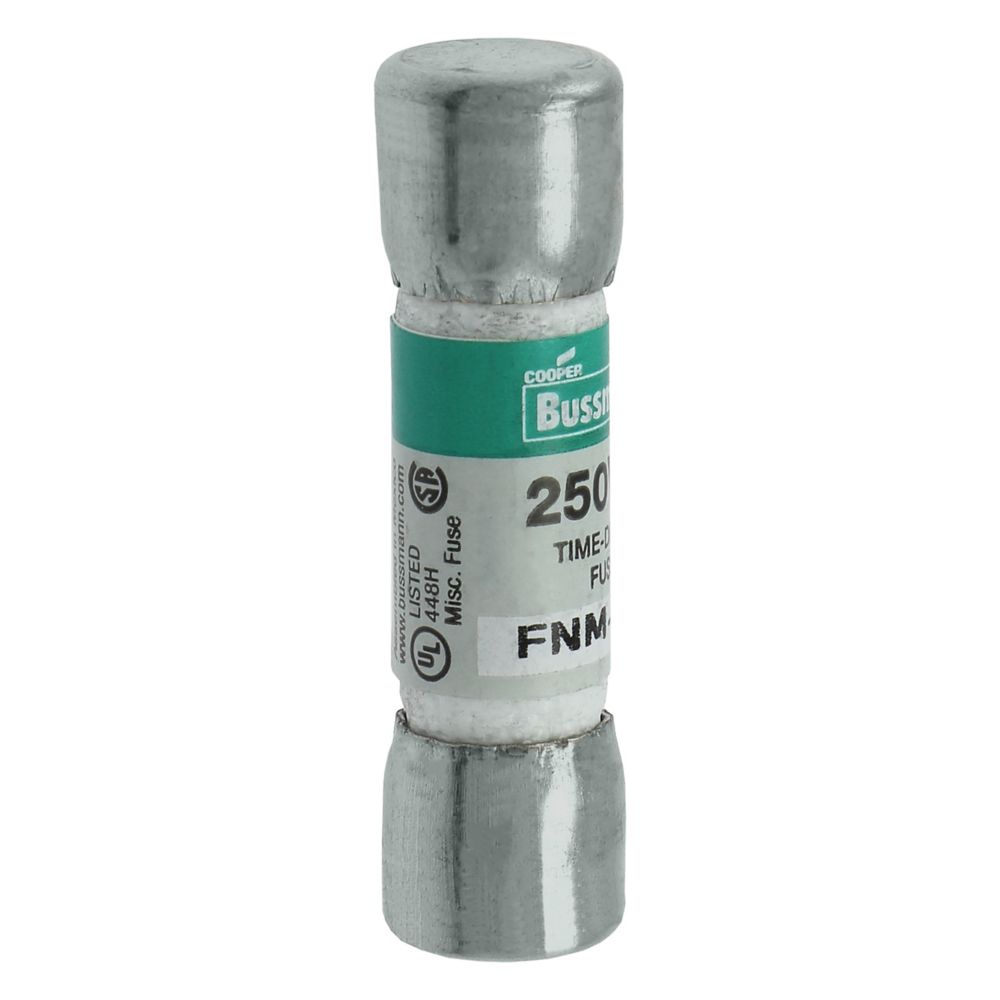

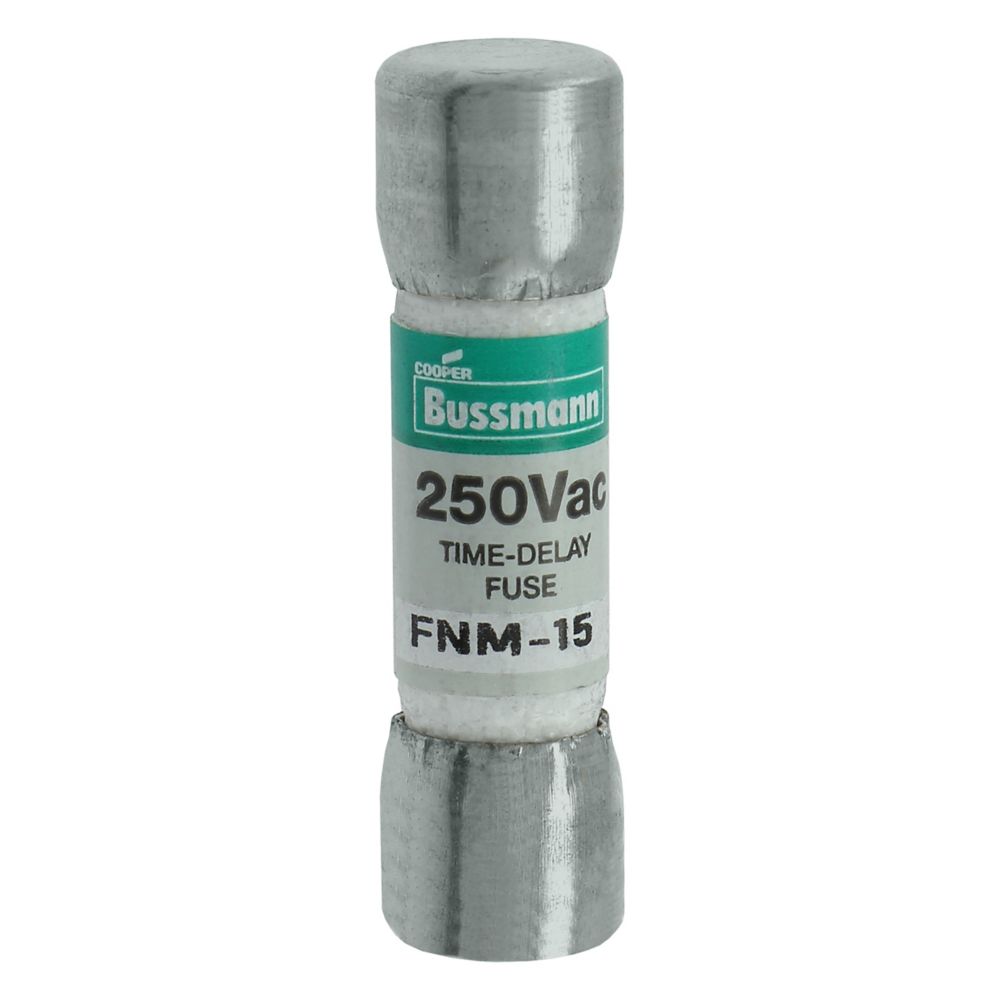

Images
: FNM15 - Large Image
: FNM15 - Large Image
: FNM15 - Large Image
: FNM15 - Large Image
: FNM15 - Large Image
: FNM15 - Large Image
: FNM15 - Small Image
: FNM15 - Large Image
: FNM15 - Video
Other Links
: FNM15 - Other
: FNM15 - Other
: FNM15 - Other
: FNM15 - Other
: FNM15 - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Features

Current Rating: 15 A
Voltage Rating: 250 V ac
Material: Melamine (Tube);Brass (Cap)
interrupt rating: 10 kAIC @ 250 V ac
amperage rating: 15 Amp
connection: Ferrule End X Ferrule End

Dimensions and Weight

Diameter: 0.41 in;10.3 mm
Overall Length: 1.5 in;38.1 mm
Size: 13/32 In Diameter X 1-1/2 In Length

Descriptions

Product Type: Fuse
Description: 15A 250V TD MIDGET FUSE
Features: For superior protection, Eaton recommends upgrading to Bussmann series Low-Peak(TM) Class CC fuses. See data sheet No. 1023.
Long Description: Fuse, Time Delay Fuse Speed, Class CC Fuse, Ferrule End x Ferrule End Connection, 15 A, 250 V ac, Melamine (Tube);Brass (Cap) Material, Dual Element, 0.41 in Diameter, 1.5 in Overall Length, 0.125 lb
Short Description: 15 A, 250 VAC, Time Delay Fusetron Fuse
extra long description: BUSS FNM-15 BUSS MIDGET FUSE
Special Features: Nickle Plated Brass Endcap

Additional Information

Connection Type: Ferrule End x Ferrule End
Fuse Speed: Time Delay
Fuse Class: Class CC
Element Type: Dual
Standards Met: UL 248-14 Listed Guide JDYX;File E19180;CSA Certified Class 1422-01;File 53787;CE Certified
package quantity: 10 CT
Made in USA: yes
media: Yes
dimensions: 0.3900 IN X 0.3900 IN X 1.4400 IN
element: Dual
class: Supplemental

Manufacturer Information

Manufacturers Part Number: FNM-15
Brand: Eaton
GTIN: 00051712521505
UPC: 051712521505

Taxonomies, Classifications, and Categories

Category Description: MIDGET FUSES
Type: FUSE

Packaging

Weight: 0.125 lb;0.057 kg
Weight per each: 0.02
Carton: 10

Uses, Certifications, and Standards

Application: General Purpose Circuits;Lighting Circuit Protection;Meter Circuits
standard: Contact factory,CE Marked,RoHS Compliant
