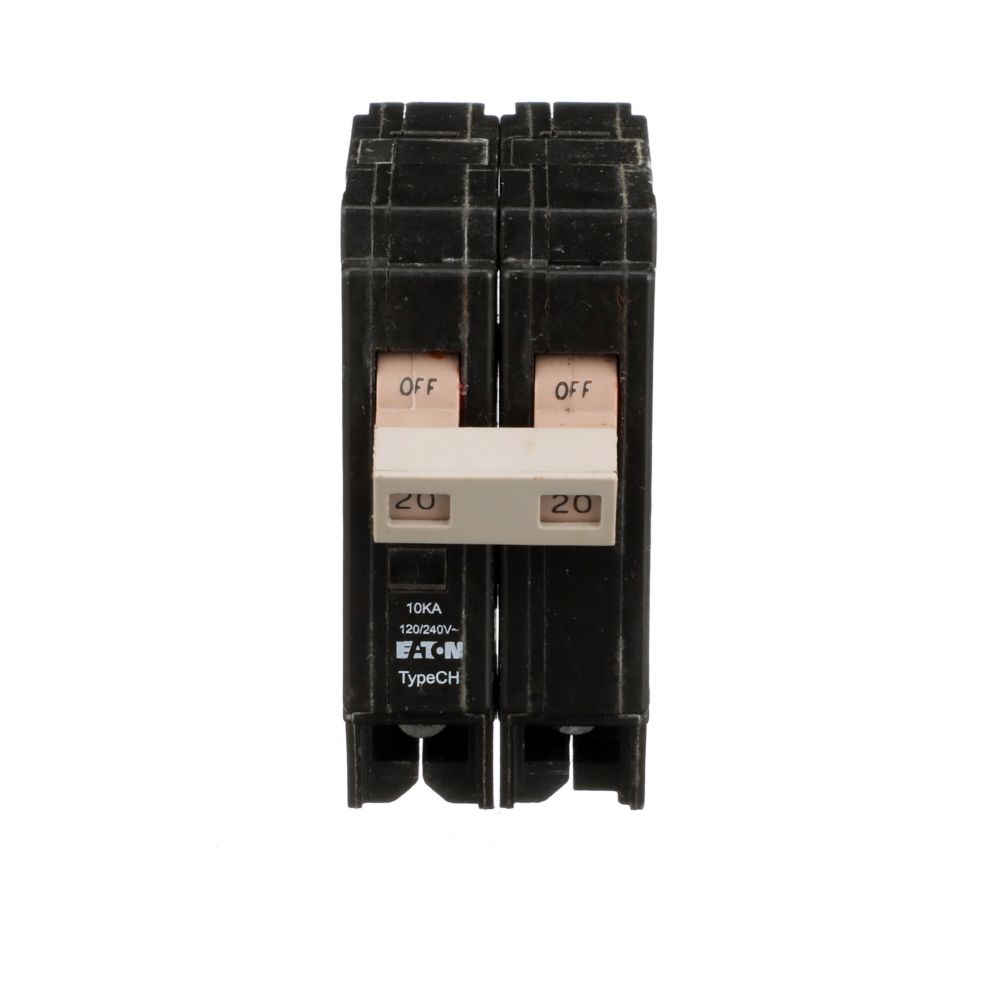

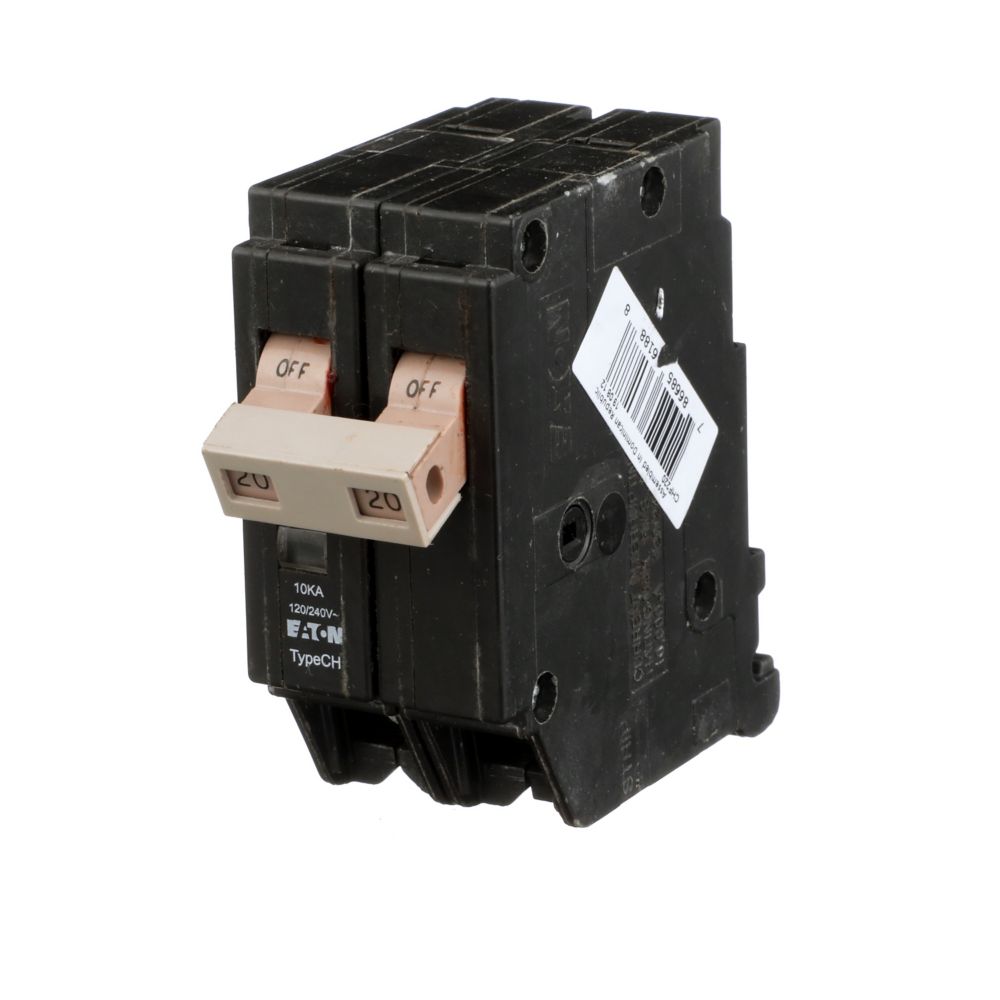

CHF220 - Type CHF BRKR 20A/2P 120/240V 10 Kaic

Eaton

$23.72 (Each)
$23.72 (Each)
$118.60 (Per 5)
$593.00 (Per 25)

Availability: In Stock Locally

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Quick Specs

Catalog Number: CHF220 Vendor Code CHD
Manufacturer: Eaton
Manufacturer's Part Number: CHF220
Description: Type CHF BRKR 20A/2P 120/240V 10 Kaic
Standard Trip Circuit Breaker, 20 A, Common Tripping Mechanism, Plug-On, 120/240 V Ac, 3 In Overall Height, 3 In Overall Length, 0.75 In Overall Width, 0.57 LB
Slang Terms: Suggest a New Term
Categories: Standard Trip Plug - 2 Pole Standard Trip Plug-In Mark as Incorrect
Suggest a New Category
Classification: Loadcenter Plug In Breakers and Accessories
UNSPSC: 39121601 - Circuit breakers
UPC/GTIN: 786685361888 / 00786685361888
Weight per unit: 0.57 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $23.72 (Each)
Carton: $118.60 (Per 5)
Standard Packaging: $593.00 (Per 25)

Resources

Tech Bulletins
: CHF220 - Tech Bulletin
Images
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
: CHF220 - Large Image
Attachments
: CHF220 - Specification Sheet
Other Links
: CHF220 - Other
: CHF220 - Other
: CHF220 - Other
: CHF220 - Other
: CHF220 - Other
: CHF220 - Other
Brochures
: CHF220 - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Features

Current Rating: 20 A
Voltage Rating: 120/240 V ac
interrupt rating: 10 kAIC
Poles: Two-pole

Dimensions and Weight

Overall Length: 3 in

Descriptions

Description: TYPE CHF BRKR 20A/2P 120/240V 10 KAIC
Product Type: Standard Trip Circuit Breaker
Long Description: Standard Trip Circuit Breaker, 20 A, Common Tripping Mechanism, Plug-On, 120/240 V ac, 3 in Overall Height, 3 in Overall Length, 0.75 in Overall Width, 0.57 lb
Features: Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip- free handle design. Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multipole breakers have internal common trip co
Short Description: Standard Trip Circuit Breaker, 20 A, 120/240 VAC
extra long description: ETN CHF220 TYPE CHF BREAKER 20A/2P

Additional Information

circuit breaker type: Standard Trip Circuit Breaker
Tripping Mechanism: Common
Mounting Type: Plug-On
Overall Height: 3 in
Overall Width: 0.75 in
for use with: Type CH Loadcenters
Standards Met: UL 489 Listed;IGCC 4813
dimensions: 1.5000 IN X 0.7500 IN X 2.6000 IN
Trip Type: Trip flag

Manufacturer Information

Brand: EATON CUTLER-HAMMER
Manufacturers Part Number: CHF220
GTIN: 00786685361888
UPC: 786685361888

Taxonomies, Classifications, and Categories

Category Description: Loadcenter Plug In Breakers and Accessories
Type: Thermal magnetic circuit breakers

Packaging

Weight: 0.57 lb
Weight per each: 0.57
Carton: 5
Package: 25

Uses, Certifications, and Standards

Application: Generation - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative EnergyOtherMarine Vessels and Equipment - Marine Vessels and Equipment - OtherDatacenters - IT Space: CI and Hyper Converged
standard: UL 489,HACR Rated
