CTAP202X - #8-#2 Sol/STR Comp Tap

Panduit

$9.98 (Each)
$9.98 (Each)
$99.75 (Per 10)
$997.53 (Per 100)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

CC202 - Cu C-Type Comp Tap 1/0-1/0 8-2 - Abb Installation Products, Inc

$13.64Each

Abb Installation Products, Inc
Cu C-Type Comp Tap 1/0-1/0 8-2

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Quick Specs

Catalog Number: CTAP202X Vendor Code PAN
Manufacturer: Panduit
Manufacturer's Part Number: CTAP202X
Description: #8-#2 Sol/STR Comp Tap
C-Type Copper Compression Tap, Non-Insulated, +90 °C Operating Temperature, 0.80 In Overall Length, Compression Terminal, 35 KV, 1 LB/Ea
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Power Tool Accessories
UNSPSC: 46182103 - Grounding hardware
UPC/EAN/GTIN: 074983821303 / 0074983821303 / 00074983821303
Weight per unit: 1 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $9.98 (Each)
Carton: $9.98 (Each)
Standard Packaging: $99.75 (Per 10)

Resources

Images
: CTAP202X - Video
: CTAP202X - Small Image
: CTAP202X - Large Image
: CTAP202X - Large Image
Other Links
: CTAP202X - Other
: CTAP202X - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Close

Help Improve Our Data

Features

Terminal Type: Compression
Material: Copper

Material, Color, and Finish

Conductor Material: Copper
Clamp Material: Copper

Dimensions and Weight

Overall Length: 0.80 in;20.3 mm
Length: 0.8

Descriptions

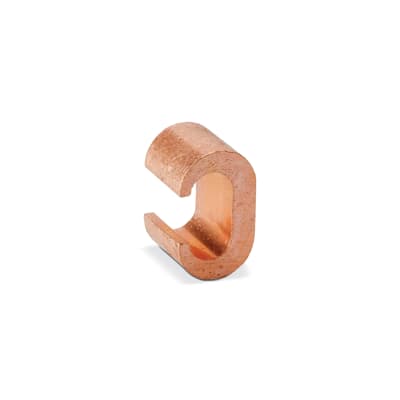

Product Type: C-Type Copper Compression Tap
Long Description: C-Type Copper Compression Tap, Non-Insulated, +90 °C Operating Temperature, 0.80 in Overall Length, Compression Terminal, 35 kV, 1 lb/EA
Short Description: C-Type Copper Compression Tap, Non-Insulated, 0.80 in;20.3 mm, 35 kV
Special Features: Made from Heavy Wall, Extruded, High Conductivity Copper;For Power Connector Applications up to 35kv
Description: #8-#2 SOL/STR COMP TAP
extra long description: PAN CTAP2/0-2-X StructuredGround™ C

Additional Information

Minimum Conductor Size: 2/0 AWG (Run-Stranded);#8 AWG (Tap-Stranded)
Maximum Conductor Size: 1/0 AWG (Run-Stranded);#2 AWG (Tap-Stranded)
Insulated/Non-Insulated: Non-Insulated
Maximum Operating Temperature: +90 °C
Maximum Voltage Rating: 35 kV
for use with: Grounding and Bonding;Direct Burial in Earth or Concrete
Standards Met: cULus Listed;UL Listed 486, 467;RoHS Compliant
package quantity: 10 PK
media: Yes

Manufacturer Information

Brand: PANDUIT
Manufacturers Part Number: CTAP202X
GTIN: 00074983821303
UPC: 074983821303

Taxonomies, Classifications, and Categories

Category Description: POWER TOOL ACCESSORIES
Type: Compression Tap

Packaging

Weight: 1 lb/EA
Weight per each: 1
Carton: 1
Package: 10

Uses, Certifications, and Standards

standard: UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
Application: Utility/Ground Grid

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Close

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of CTAP202X.

Jump To:

Similar Items

Similar items are close alternatives to CTAP202X, though they may not be 100% alike.

View Larger

Copper C-Type Compression Tabs, Wire Range Groove A: 1/0 Sol - 2/0 STR, Wire Ran...

Our Part #: CC202
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: CC 202
Manufacturer: Abb Installation Products, Inc
Find: Similar Items
Pkg Sizes: 100 ($1,364.00) ·

CC202 - Abb Installation Products, Inc

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$13.64

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

C-Tap, 1 Terminal, #1 STR to #2/0 STR Compatible Wire Size, #6 Awg Sol to #2 Awg...

Our Part #: CTP202
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: CTP202
Manufacturer: Abb Installation Products, Inc
Find: Similar Items
Pkg Sizes: 25 ($1,437.40) ·

CTP202 - Abb Installation Products, Inc

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$57.50

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

Cross Referenced

These items are similar to CTAP202X but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
YC26C2	Burndy	00781810114803
CP202	Hubbell Power Systems	n/a
11480	NAED	n/a
CTAP202X	Panduit	00074983821303
