5851LA - Recept Single 20A 250V Side-Wire La

Legrand-Pass & Seymour

$8.43 (Each)
$8.43 (Each)
$84.25 (Per 10)
$842.51 (Per 100)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 5851LA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 5851LA
Description: Recept Single 20A 250V Side-Wire La
Heavy-Duty Spec Grade Single Receptacle, Side Wire 20A 250V
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification: Industrial Receptacles
UNSPSC: 39121406 - Electrical receptacles
UPC/EAN/GTIN: 785007585131 / 0785007585131 / 00785007585131
Weight per unit: 0.1604 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $8.43 (Each)
Carton: $84.25 (Per 10)
Standard Packaging: $842.51 (Per 100)

Resources

Images

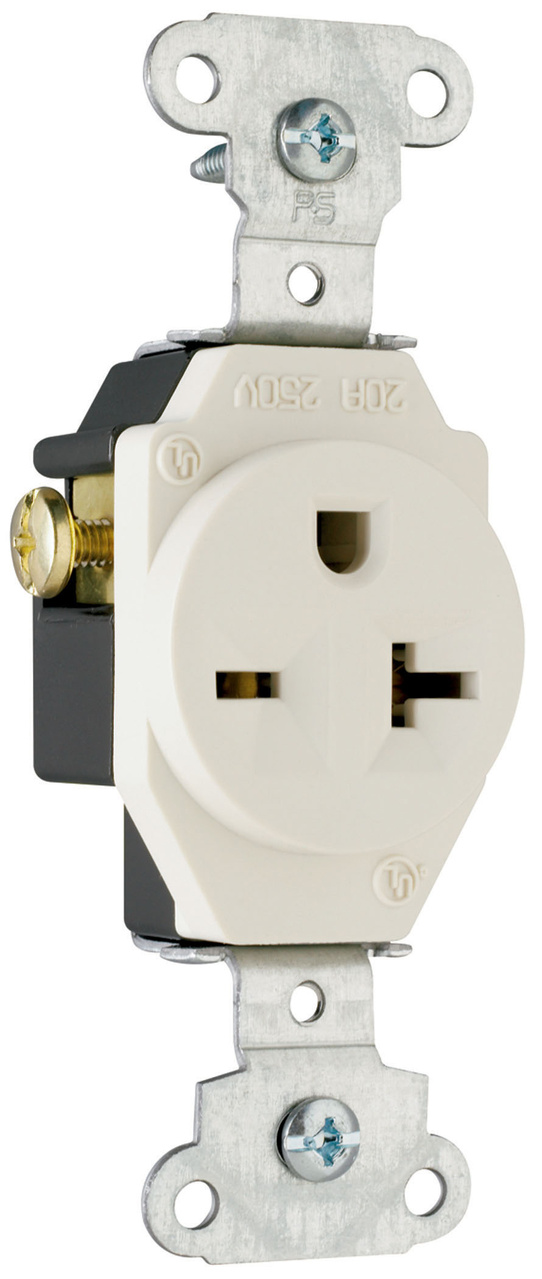

: 5851LA - Large Image
: 5851LA - Small Image
Attachments
: 5851LA - Specification Sheet
Other Links
: 5851LA - Other
: 5851LA - Other
: 5851LA - Other
Brochures
: 5851LA - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Wire Size: 14 - 10
amperage rating: 20
Voltage Rating: 250
Number of Wires: 3
connection: Back and side wire
Poles: Double Pole
Wattage: Electrical power is expressed in Amps and Volts.
Material: Nylon

Dimensions and Weight

Width: 1.08
Height: 3.68

Descriptions

Product Type: Recept Single 20A 250V Side-Wire La
Description: RECEPT SINGLE 20A 250V SIDE-WIRE LA
extra long description: P&S 5851LA RECEPT SINGLE 20A 250V S
Long Description: Heavy-Duty Spec Grade Single Receptacle, Side Wire 20A 250V
Special Features: Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.

Additional Information

Voltage: 250.0 V
indoor/outdoor: Indoor
Outlet Type: Indoor, Commercial
Dielectric Strength: Withstands 2000V minimum

Manufacturer Information

Brand: Pass and Seymour
Manufacturers Part Number: 5851LA
GTIN: 00785007585131
UPC: 785007585131

Taxonomies, Classifications, and Categories

Category Description: Industrial receptacles
Type: Outlet

Trade Size

Amperage: 20.0

Packaging

Weight per each: 0.1604
Carton: 10
Package: 100

Uses, Certifications, and Standards

Temperature Rating: -40° - 60° C
nema rating: 6-20R
Application: Commercial
standard: CULUS, UL498, CSA C22.2 No. 42
environmental conditions: Flammability: UL94 V2
Mounting: WALL

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of 5851LA.

Jump To:

Eaton Commercial Specification Grade Single Receptacle, #14-10 Awg, 20A, Commerc...

Our Part #: 1876LA
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 1876LA
Manufacturer: Eaton Wiring Devices
Find: Similar Items
Pkg Sizes: 10 ($86.90) · 100 ($869.00) ·

1876LA - Eaton Wiring Devices

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$8.69

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

Cross Referenced

These items are similar to 5851LA but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
1876LA	Eaton Wiring Devices	00032664583254
RR205LA	Hubbell Wiring Device-Kellems	00883778300653
5821-T	Leviton	00078477271254
5851LA	Legrand Pass & Seymour	00785007585131
5871LA	Legrand Pass & Seymour	00785007608007
1876A	GENERAL ELECTRIC	n/a
1876LA	GENERAL ELECTRIC	n/a
CW1877LA	GENERAL ELECTRIC	n/a
